Electric Vertical Mast Lift 10’/16′ – Bravi – Leonardo HD

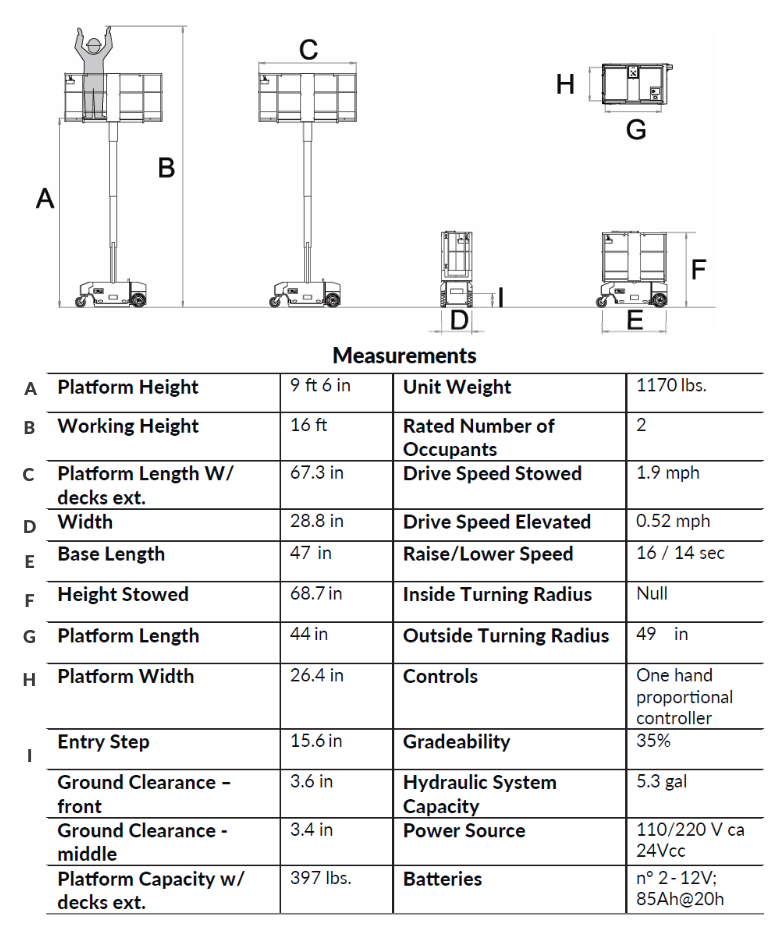

RENTAL AND SALE | 1. CAT CLASS | 400-1010 |
| Base length | 47'' |
| Batteries | n°2-12V 85Ah@20h |
| Controls | One hand |
| Drive speed elevated | 0,84 km/h |
| Drive speed stowed | 3 km/h |
| Entry step | 15.6'' |
| Gradeability | 35 % |
| Ground clearance Front | 3.6'' |
| Ground clearance Middle | 3.4'' |
| Height stowed | 68.7'' |
| Hydraulic sytem capacity | 5.3 gal |
| Inside turning radius | 0 |
| Outside turning radius | 49'' |
| Platform capacity W/ decks ext. | 397 lbs |
| Platform Height | 9' 6'' |
| Platform length | 44'' |
| Platform length W/ decks ext. | 67.3'' |
| Platform width | 26.4'' |
| Power source | 110/220 V ca 24Vcc |
| Raise / Lower speed | 16 / 14 sec |
| Rated number of occupants | 1 |
| Unit weight | 1,170 lbs |
| Width | 28.8'' |
| Working Height | 16' |
ADDITIONAL INFO
The Bravi Leonardo HD is an electric vertical mast lift designed to enhance productivity and safety for indoor height work. Offering a working height of 16 ft and a lift capacity of 397 lbs (180 kg), it’s a smart, ergonomic alternative to ladders and scaffolding.
Ultra-compact and lightweight, the Leonardo HD easily navigates tight spaces, fits through standard doorways, and can even ride in most elevators. With a width of only 28.8 in and a tight turning radius, it’s perfect for commercial buildings, warehouses, hospitals, schools, and renovation sites.
Equipped with electric self-propulsion, it allows the operator to move the lift while elevated, significantly improving jobsite efficiency. A manual roll-out deck extension provides extra reach without repositioning the platform, allowing safe access to hard-to-reach areas.
Built for heavy-duty use, the Leonardo HD is made from durable, impact-resistant materials. Its simple, low-maintenance design ensures reliability and long-term performance. Easy to operate, it’s ideal for electricians, painters, technicians, maintenance crews, and anyone needing a safe, mobile height access solution indoors.
✅ Working height: 16 ft
✅ Lift capacity: 397 lbs (180 kg)
✅ Compact width: 28.8 in
✅ Electric self-propelled drive
✅ Manual deck extension for extra reach
✅ Non-marking wheels
✅ One-person operation
✅ Efficient replacement for ladders and stepladders
📍 Available at LOU-TEC, the Bravi Leonardo HD is the go-to lift for professionals who need a fast, simple, and safe indoor height access solution.
CAT-CLASS: 400-1010
